Introduction

The AIChE 2018 Regional Conference at Montana State University brought major success to our current Chem-E-Car teams. At the conference, our teams were able to claim the following awards:

Vancruiser

  • 1st Place at the Chem-E-Car Competition
  • 2nd Place at the Chem-E-Car Poster Competition

The Black Box

  • 3rd Place at the Chem-E-Car Competition
  • 1st Place at the Chem-E-Car Poster Competition

Below, we are excited to present to you Vancruiser!

The Vancruiser

By securing 1st place at Regionals, Vancruiser has advanced to compete at the AIChE 2018 National Chem-E-Car Competition this October, 2018. In the process of preparing for our next competition, the Vancruiser has been torn apart and is currently being rebuilt to optimize its functions and improve performance. The Vancruiser will be described below at its state during the Regional Competition of April, 2018.

alt text

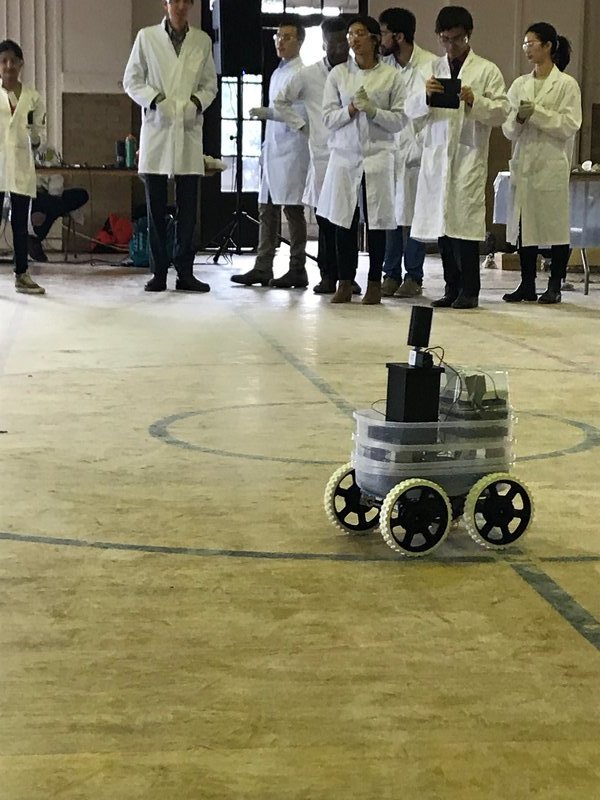

The Vancruiser completing its winning trial at the 2018 Pacific Northwest Regional Competition

Named after our city of Vancouver, the Vancruiser uses an Iodine-Ascorbic Acid clock reaction as the stopping mechanism and a Zinc-Air battery to power the motor. The three-layered body, each of which is a tupperware container, separates the circuity, the reaction vessel and the battery, and lastly, the container holding the water load.

Stopping Mechanism

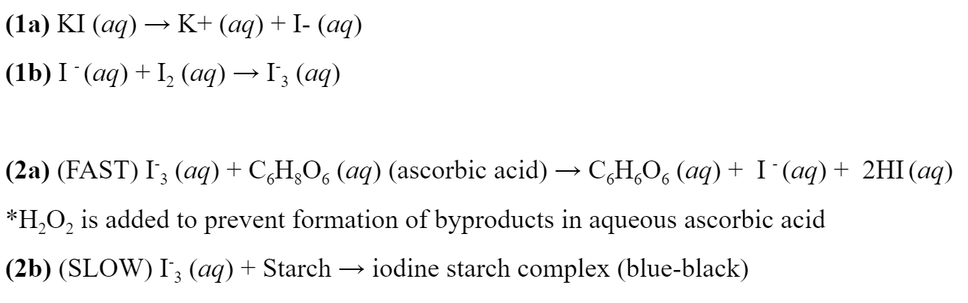

The stopping mechanism uses Lugol’s solution in which iodide anions from the potassium iodide react with molecular iodine, creating triiodide ions. In the presence of ascorbic acid, triiodide will quickly oxidize ascorbic acid, forming dehydroascorbic acid. When the ascorbic acid is used up, the triiodide reacts with the starch in solution, creating a dark blue/black colored solution.

alt text

On the Vancruiser, Lugol’s solution was kept in the above compartment (the injection port), where its flow into the reaction vessel was controlled by a valve. The ascorbic acid, water and starch were kept within the reaction vessel, and as soon as the car began to accelerate, the Lugol’s solution was injected into the vessel. After the reaction is complete, the change in color is detected by an LED and solar panel sensor control system. Once color change in detected, the motor is stopped.

alt text

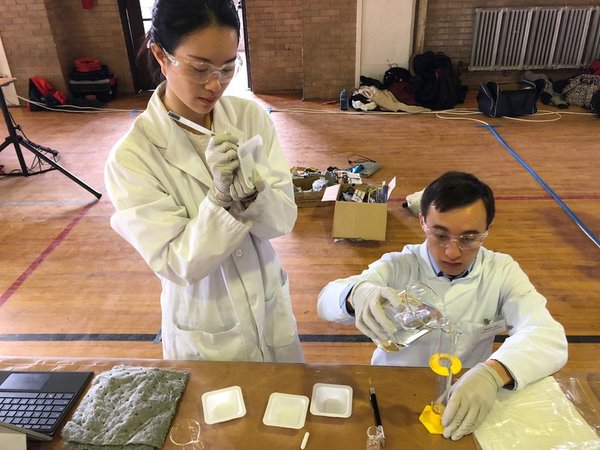

Brandon and Wendie (in the lab team) carefully reproducing the Iodine- Ascorbic Acid Clock Reaction at the competition while under pressure

alt text

The Iodine-Ascorbic Acid Clock Reaction in action

Battery

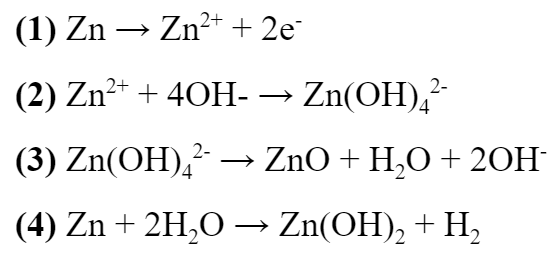

The battery used a magnesium oxide coated Gaskatel mesh as a cathode and zinc power made into a paste using water as an anode. When oxygen diffuses through and reacts with water present in the pores of the mesh creating hydroxyl ions, hydroxyl undergoes a reaction with the zinc anode which results in the release of water, zinc oxide, hydrogen and electrons which provide an approximate voltage of 1.2 V per cell. Enough cells are put together to power a 12V DC motor which moves the car at a rate of 15 meters per minute.

alt text

alt text

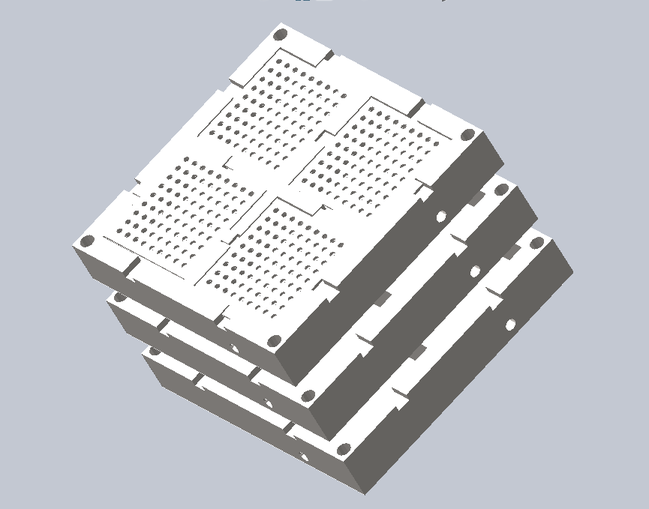

The 3D model of the battery casing is shown above. Within each of the four compartments on each stack, the lid encloses the Zinc powder, metal plating and Gaskatel, which together comprise one cell of the battery

alt text

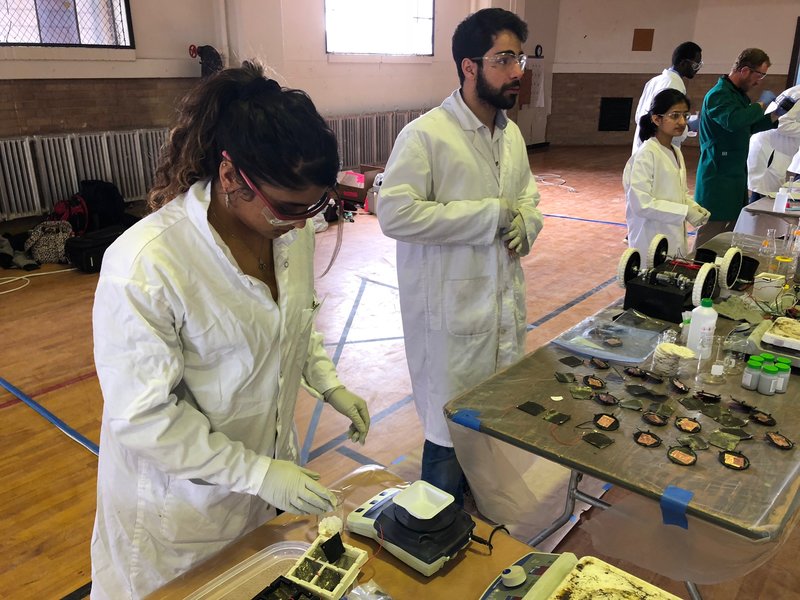

Fiona and Matheus (power source teams) working on their respective batteries during the competition

Control System

The Vancruiser uses an arduino to control the solenoid valve, detection system and stopping mechanism. An arduino is a microcontroller which can be used to control electronics in a circuit. When the car is switched on the arduino activates a solenoid valve, which allows reactant to pour into a beaker housed in a reaction vessel and initiates the iodine clock reaction. In addition, a stirring motor is activated, stirring the reactants as the reaction progresses. Simultaneously, the chemical battery is connected to the motors and the car begins to move.Once the reaction finishes the arduino detects the color change and stops the car.

alt text

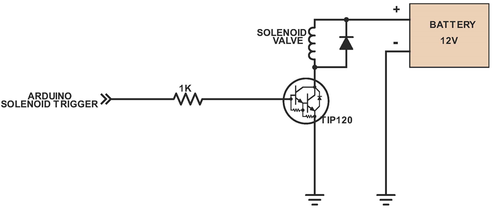

Above shows the system for the solenoid valve, which controls the flow of the Lugol’s solution into the reaction vessel at the start of the run. The solenoid valve is powered by a 9V battery, which is supplied separately (not the chemical battery created by the battery team)

alt text

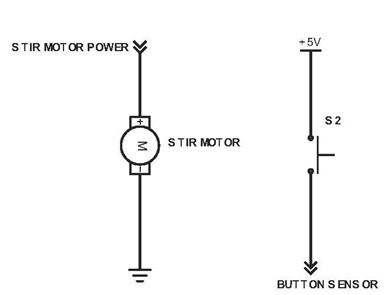

Above shows the control for the stir motor and button on the Vancruiser. The stir motor is used to spin a stir magnet within the reaction vessel to ensure the Iodine-Ascorbic Acid solution is mixed evenly

alt text

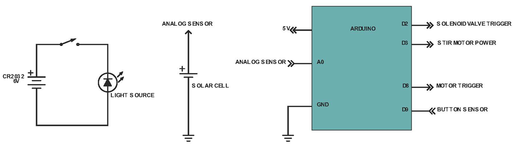

Above shows the systems for the light source, solar cell and Arduino. The light source and solar cell comprise the clock reaction sensor system and detects when the reaction has changed color. This data is sent to the Arduino, which is the so-called “brain” of the Vancruiser, and the Arduino, after receiving this data, shuts off the motor powering the movement of the car

alt text

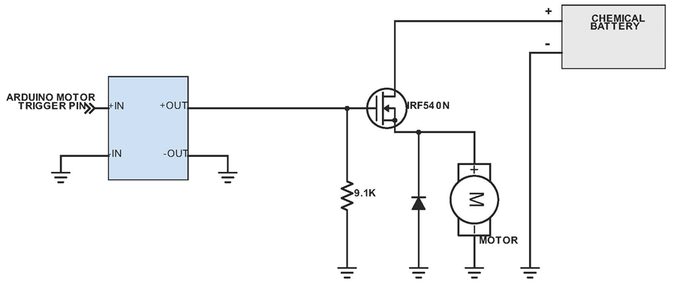

Above shows the system for the Zinc-air battery (created by the power source team), motor and Arduino. Once the Arduino has been informed of the color change, it triggers the stopping mechanism, which prevents the battery from powering the motor, and hence stopping the car

Mechanical Components

All the battery casings, reaction vessel and circuity cover are 3D printed. Water was secured in 700mL foldable water packs. Stacked Tupperware containers made up the body of the car. The motor powering the car was a 12 V DC motor.

alt text

The 3D model of the Vancruiser showing the car body, wheels, reaction vessel, battery casing, motor and Arduino

alt text

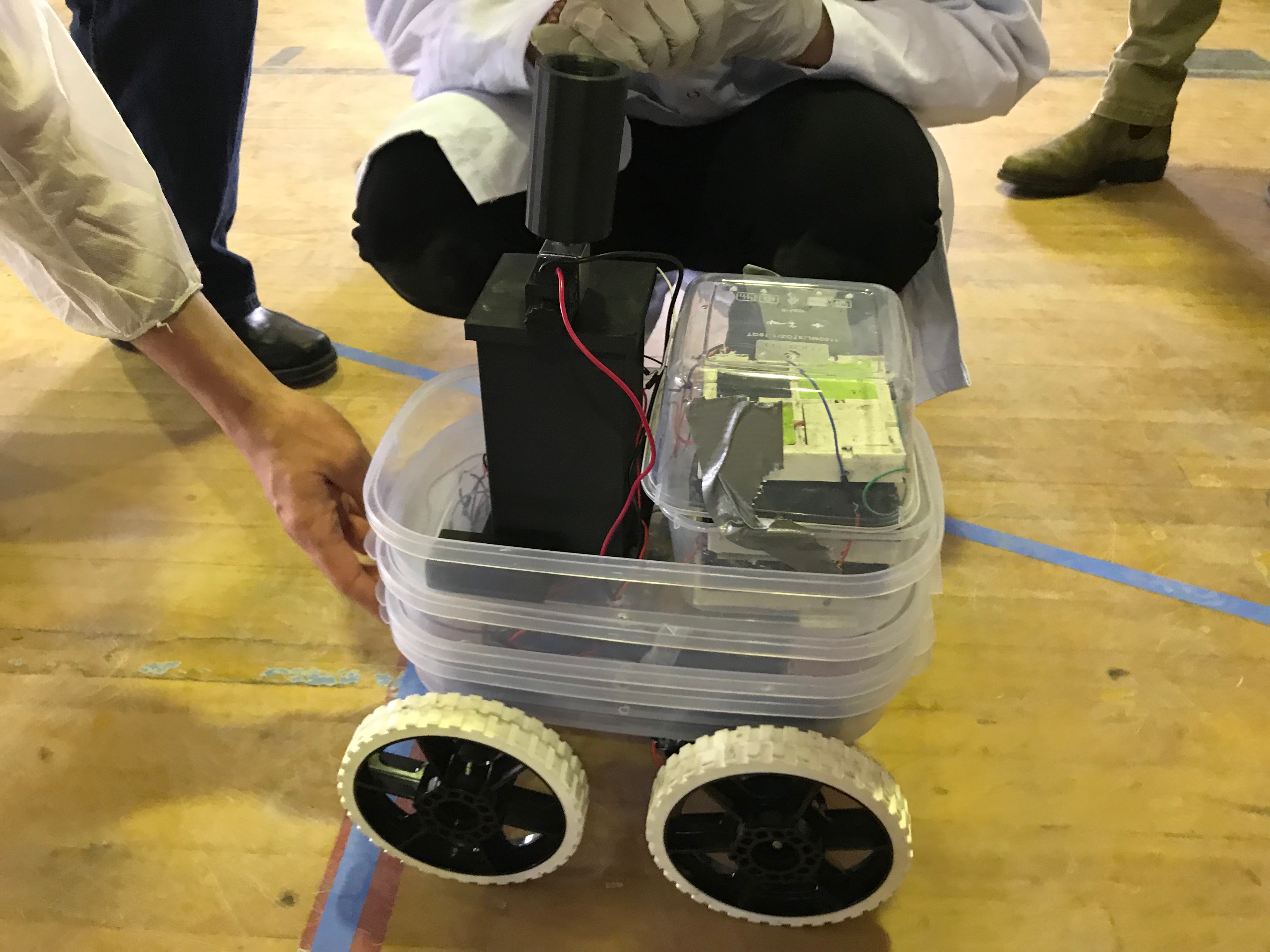

The Vancruiser at the start line during its winning trial at the competition
